BK Series 3-Wires LED Track Light (≥100lm/W EAGLERISE & Bridgelux)

Inquiry for Factory Quote

Commercial 3-Wires BK LED Track Light Series (≥100lm/W, ErP Class E). Built with EAGLERISE commercial driver and Bridgelux COB in a cold-forged aluminum housing.

Track Compatibility: 3-Wires 1-Circuit Standard Commercial Track
Output Luminous Efficacy: ≥ 100lm/W (ErP Energy Efficiency Class E)
Driver Engine: EAGLERISE High Reliability Commercial Driver
LED Light Engine: Bridgelux High Color Rendering COB (CRI ≥ 90)
Housing Technology: Cold Forging Pure Aluminum Body
Certification & Warranty: CE, RoHS, ErP / 3-Year Commercial Warranty

Model & Type

Finish / Color

Clear

EAGLERISE + Bridgelux • 3-Wires

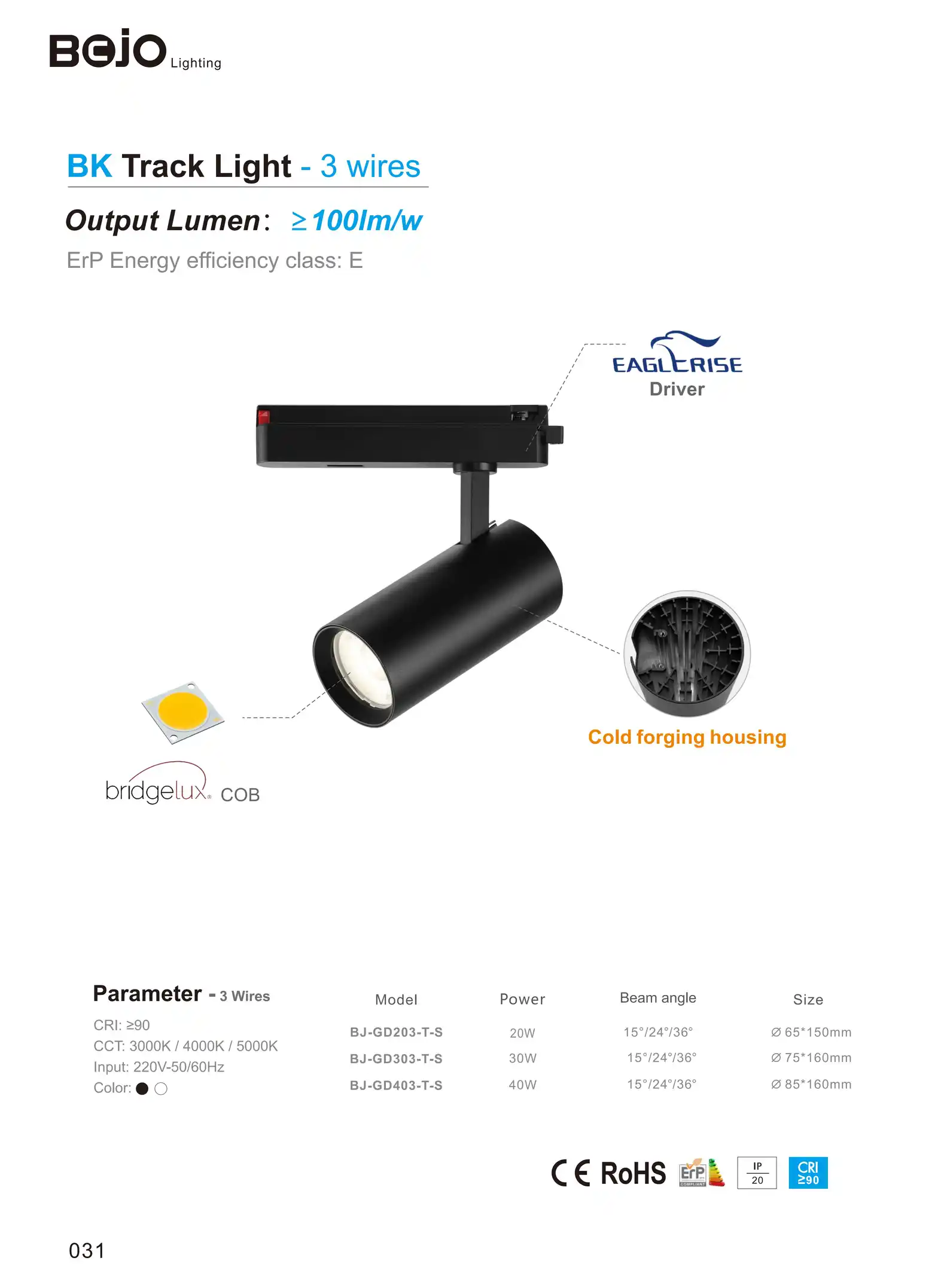

BK Series 3-Wires Commercial LED Track Light (≥100lm/W)

Combines genuine EAGLERISE commercial driver technology with Bridgelux high-CRI COB light engine inside a high-strength cold-forged aluminum housing. Delivers ≥100lm/W efficacy for retail stores, showrooms, and commercial interior projects.

EAGLERISE Commercial Driver: Stable output with high power factor and flicker-free lighting performance.
Bridgelux High-CRI COB: Color fidelity CRI ≥ 90 restores vivid product textures.
Cold Forging Housing: High thermal conductivity ensuring cool operating temperatures and extended LED life.
3-Wires Track Adapter: Compatible with 3-wire 1-circuit commercial track rails.
Precision Optics: 15°, 24°, and 36° beam angle options.

≥100 lm/W
EAGLERISE Driver
Bridgelux COB
CRI ≥ 90
20W / 30W / 40W

EAGLERISE

Commercial Driver

BRIDGELUX

Bespoke COB Engine

≥100 lm/W

ErP Class E Output

3-WIRES

Standard Single Phase

Comprehensive Technical Specifications

Product Series	BK Series 3-Wires Commercial LED Track Light
Track Compatibility	3-Wires 1-Circuit Standard Commercial Track Rails
Models & Dimensions	BJ-GD203-T-S (20W / Φ65150mm), BJ-GD303-T-S (30W / Φ75160mm), BJ-GD403-T-S (40W / Φ85*160mm)
Luminous Output Efficacy	≥ 100lm/W (ErP Energy Efficiency Class E)
Color Rendering Index (CRI)	CRI Ra ≥ 90 High Color Fidelity
Color Temperature (CCT)	3000K Warm White / 4000K Neutral White / 5000K Daylight White
Driver Engine	EAGLERISE High-Reliability Commercial Driver
LED Chip Engine	Bridgelux High Output Commercial COB
Housing Process	Cold Forging Pure Aluminum Body (150-250MPa Strength)
Beam Angles	15°, 24°, 36° Optical Reflector
Input Operating Voltage	AC 220V, 50/60Hz
Finish Color Options	Electrostatic Powder-Coated Matte Black / Pure White
Certifications & Standards	CE, RoHS, ErP Class E, IP20
Commercial Warranty	3-Year Factory Commercial Warranty
