High Lumen 4-Wires LED Track Light (≥120lm/W)

Inquiry for Factory Quote

Commercial 4-Wires 3-Circuit High Lumen LED Track Light Series (≥120lm/W, ErP Class D). Fitted with premium EAGLERISE / PHILIPS isolated driver for long-term commercial reliability.

Track Compatibility: 4-Wires 3-Circuit Commercial Track
Output Luminous Efficacy: ≥ 120lm/W (ErP Energy Efficiency Class D)
Driver Engine: EAGLERISE Bespoke Isolation Driver / PHILIPS Isolation Driver
Color Quality: CRI Ra ≥ 90 High Fidelity
Available Sizes: 20W (Φ62mm), 30W (Φ75mm), 40W (Φ90mm)
Certification & Warranty: CE, RoHS, TÜV Rheinland, ErP / 3-Year Commercial Warranty

Model & Type

Finish / Color

Clear

Commercial Track Series • ≥120lm/W

High Lumen 4-Wires Commercial LED Track Light (≥120lm/W)

Built with EAGLERISE bespoke isolation driver and Smalite high-output COB, this 4-wires track spotlight delivers stable ≥120lm/W luminous efficiency for retail flagship stores, car showrooms, and commercial interior projects.

≥120lm/W Output Efficacy: Delivers bright, concentrated commercial accent illumination (ErP Class D).
EAGLERISE / PHILIPS Isolation Driver: Ensures high electrical safety, surge protection, and flicker-free visual comfort.
CRI ≥ 90 Color Fidelity: Enhances visual clarity and color contrast in retail displays.
Flexible Multi-Angle Optics: 15°, 24°, and 38° beam angles for focused spotlighting and wall-wash lighting.
4-Wires 3-Circuit Track Adapter: Fully compatible with Global, Staff, Eutrac, and standard European track channels.

≥120 lm/W
EAGLERISE Isolation Driver
CRI ≥ 90
4-Wires 3-Circuit
20W / 30W / 40W

≥120 lm/W

High Output Efficacy

ISOLATED

Eaglerise / Philips Driver

CRI ≥ 90

Retail Grade Color

4-WIRES

3-Circuit Universal Track

Catalog Overview & Mechanical Drawings

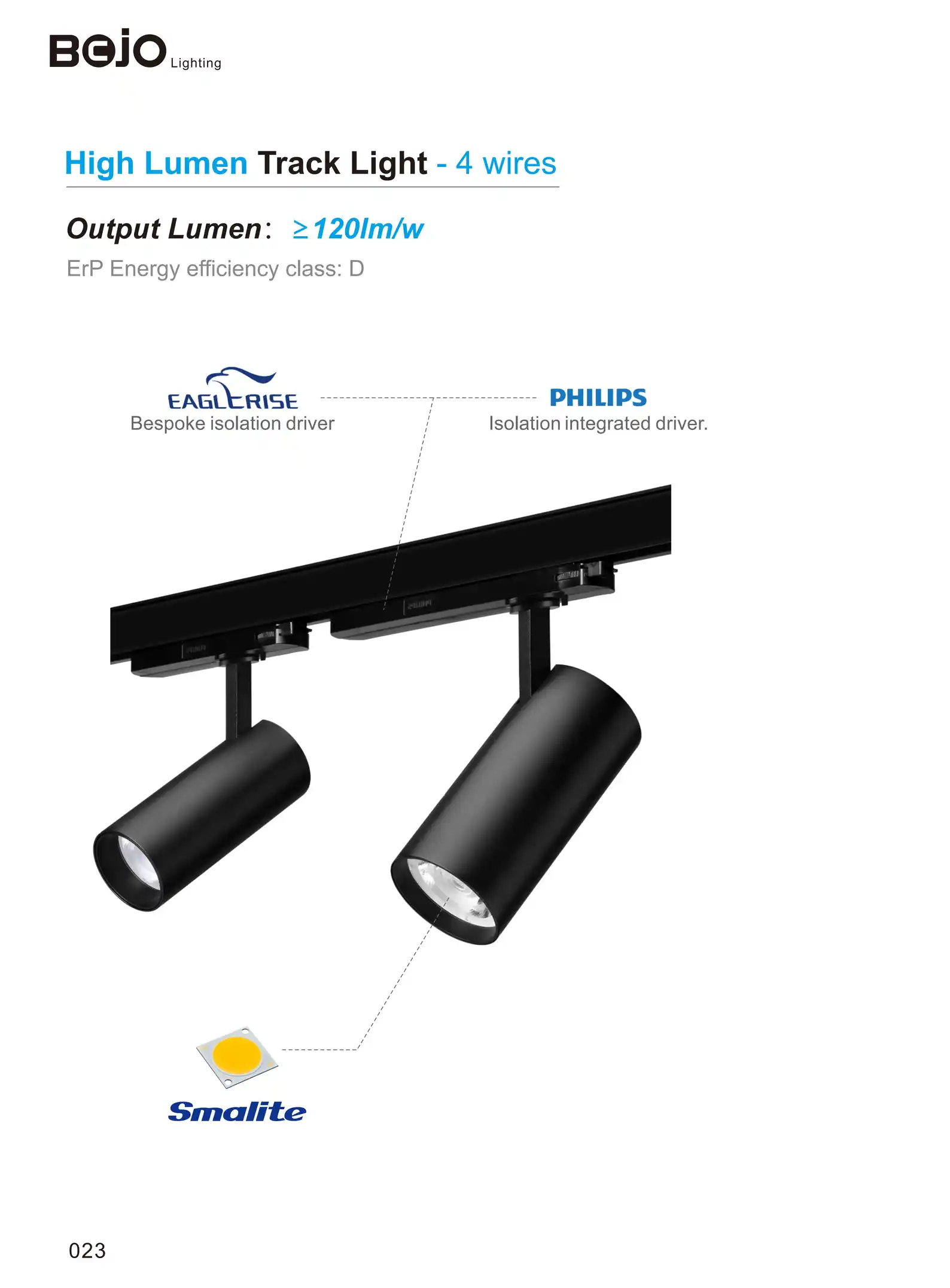

BOJO High Lumen 4-Wires Track Light Specifications

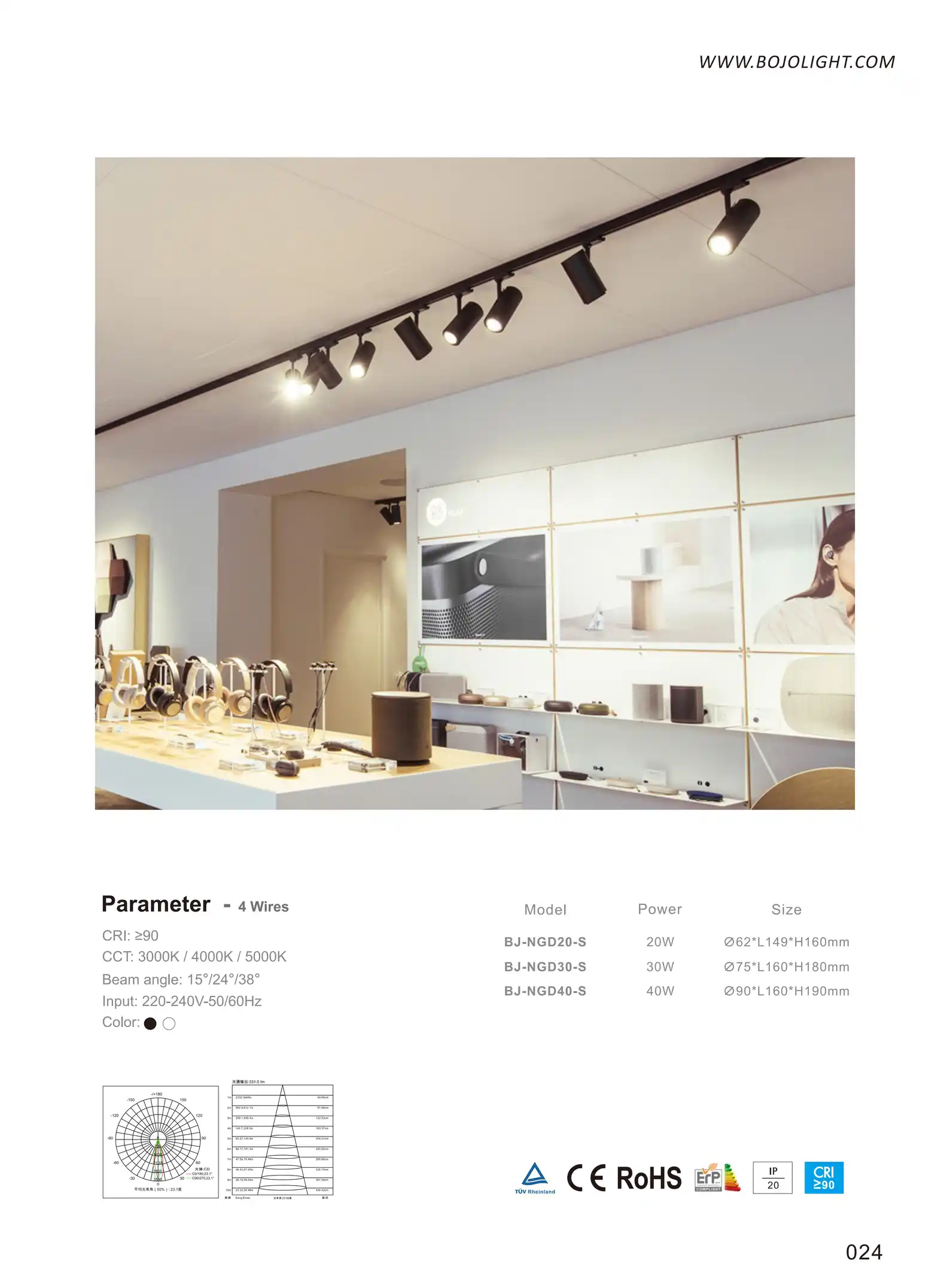

BOJO High Lumen Track Light Polar Curves

Comprehensive Technical Specifications

Product Series	High Lumen 4-Wires Commercial LED Track Light
Track Compatibility	4-Wires 3-Circuit Universal Commercial Track Channel
Model & Dimensions	BJ-NGD20-S (20W / Φ62L149H160mm), BJ-NGD30-S (30W / Φ75L160H180mm), BJ-NGD40-S (40W / Φ90L160H190mm)
System Efficacy	≥ 120lm/W (ErP Energy Efficiency Class D)
Color Rendering Index (CRI)	CRI Ra ≥ 90 / R9 > 50 (High Color Fidelity)
Color Temperature (CCT)	3000K Warm White / 4000K Neutral White / 5000K Daylight White
Beam Angles	15° Spot, 24° Medium, 38° Flood
LED Light Source	Smalite High Efficiency COB Array
Driver Manufacturer	EAGLERISE Bespoke Isolation Driver / PHILIPS Isolation Integrated Driver
Input Operating Voltage	AC 220V–240V, 50/60Hz
Housing & Color Finish	Die-Cast Aluminum in Architectural Matte Black / Clean Pure White
Certifications & Standards	TÜV Rheinland, CE, RoHS, ErP Class D, IP20
Commercial Warranty	3-Year Factory Commercial Warranty

Model & Type	BJ-NGD20-S (20W / Φ62L149H160mm), BJ-NGD30-S (30W / Φ75L160H180mm), BJ-NGD40-S (40W / Φ90L160H190mm)
Finish / Color	Matte Black, Pure White
