BH Series 4-Wires LED Track Light (≥100lm/W Cold Forging)

Inquiry for Factory Quote

Commercial 4-Wires Cold Forging LED Track Light Series (≥100lm/W, ErP Class E). Built with 98% pure cold forged aluminum housing (150–250MPa) and Smalite / Bridgelux bespoke COB.

Track Compatibility: 4-Wires 3-Circuit Commercial Track
Output Luminous Efficacy: ≥ 100lm/W (ErP Energy Efficiency Class E)
Housing Technology: 98% Pure Cold Forging Aluminum (150–250MPa Strength)
LED Light Engine: Smalite / Bridgelux Bespoke COB (CRI ≥ 90)
Driver Architecture: BOJO Non-Isolation Integrated In-Track Driver
Certification & Warranty: CE, RoHS, ErP / 3-Year Commercial Warranty

Model & Type

Finish / Color

Clear

Cold Forging Series • 4-Wires

BH Series 4-Wires Cold Forging LED Track Light (≥100lm/W)

Engineered with high-pressure cold forging technology (98% pure aluminum), delivering 150–250MPa tensile strength and superior corrosion resistance. Powered by Bridgelux / Smalite COB with ≥100lm/W output efficiency.

Cold Forging Pure Aluminum Body: High thermal conductivity and anti-oxidation structure outperforming die-cast alloy.
≥100lm/W Output Efficacy: High lumen output with ErP Class E energy classification.
Bridgelux / Smalite COB: CRI ≥ 90 high color rendering across all color temperatures.
BOJO Integrated Track Driver: Slim non-isolation driver integrated directly into the 4-wires track adapter.
Multi-Beam Optics: 15°, 24°, 36°, and 45° precision reflector beam angles.

≥100 lm/W
Cold Forging Aluminum
Bridgelux COB
CRI ≥ 90
20W / 30W / 40W

≥100 lm/W

ErP Class E Efficiency

98% AL

Cold Forging Housing

CRI ≥ 90

Bridgelux / Smalite COB

4-WIRES

3-Circuit Commercial Track

Catalog Overview & Mechanical Drawings

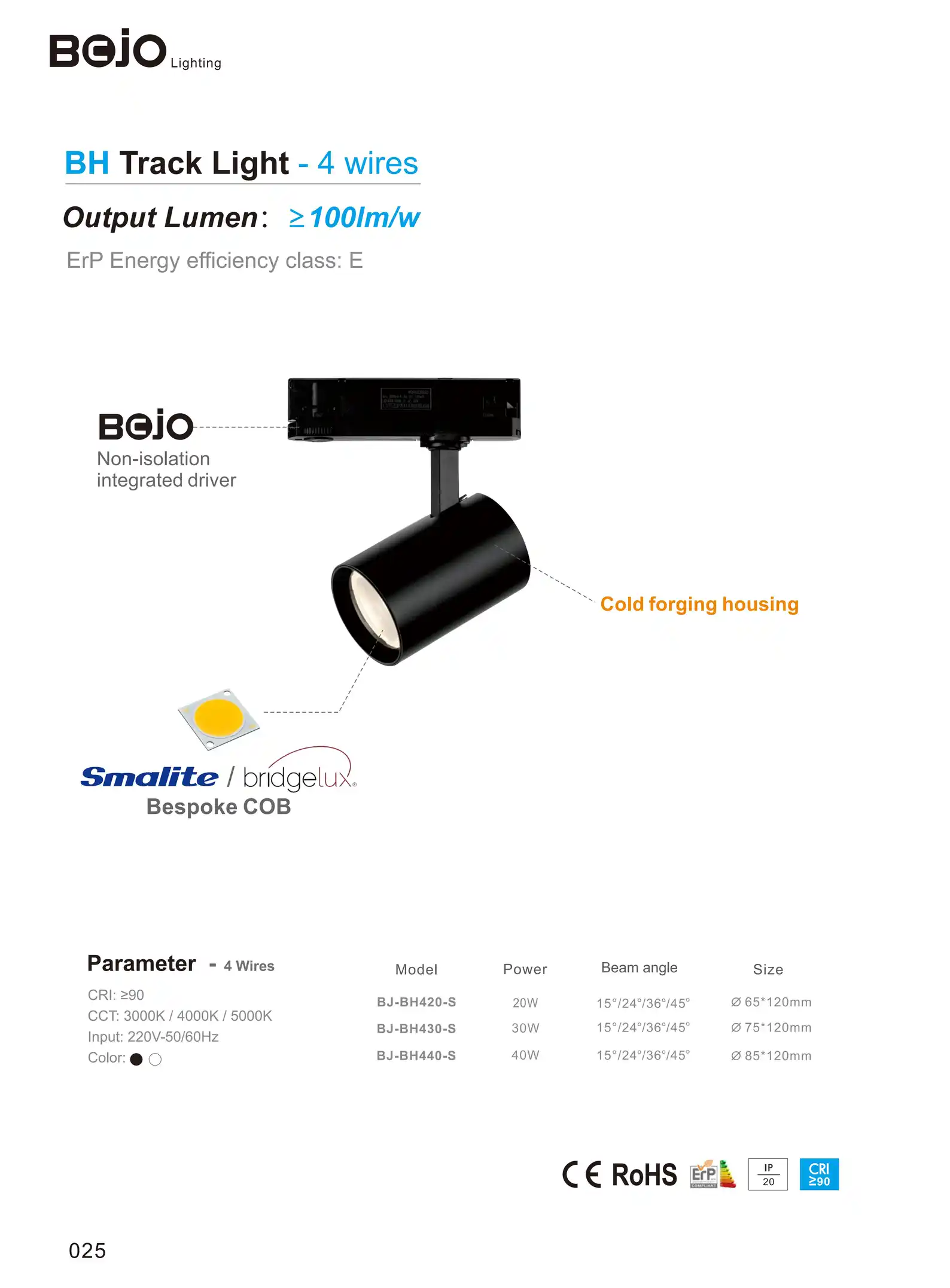

BOJO BH Series 4-Wires Track Light Specifications

Comprehensive Technical Specifications

Product Series	BH Series 4-Wires Cold Forging LED Track Light
Track System Standard	4-Wires 3-Circuit Universal Commercial Track
Models & Dimensions	BJ-BH420-S (20W / Φ65120mm), BJ-BH430-S (30W / Φ75120mm), BJ-BH440-S (40W / Φ85*120mm)
Luminous Output Efficacy	≥ 100lm/W (ErP Energy Efficiency Class E)
Color Rendering Index (CRI)	CRI Ra ≥ 90 High Color Accuracy
Color Temperature (CCT)	3000K Warm White / 4000K Neutral White / 5000K Daylight White
Housing Process & Material	Cold Forging Structure (98% Pure Aluminum, 150-250MPa Tensile Strength)
Beam Angles	15°, 24°, 36°, 45° Faceted Aluminum Reflector
LED Light Source	Smalite / Bridgelux Bespoke COB
Driver Technology	BOJO Non-Isolation Integrated In-Track Driver
Input Operating Voltage	AC 220V, 50/60Hz
Finish Color Options	Electrostatic Powder-Coated Matte Black / Pure White
Certifications & Standards	CE, RoHS, ErP Class E, IP20
Commercial Warranty	3-Year Factory Commercial Warranty
