DC48V Architectural Series
DC48V Track Grille Lights & Detachable Pendant Modules (Bojo Roc 360 Series)
Engineered for the BOJO Roc 360 Cylinder Track System. Combines high-density focused louvered grille lights (BJ-YGGS series) with plug-and-play detachable pendant lights (BJ-YGCCB / BJ-YGDD / BJ-YGQX series) for sophisticated architectural lighting design.
- Architectural Grille Optics: Precision 24° beam louvered grille modules (8W / 16W / 24W / 32W) deliver high-output glare-free illumination.
- Detachable Quick-Connect Pendants: Modular plug-in pendant attachments including spherical globe lights, modern cone pendants, cylinder drop lights, and adjustable focus spots.
- CRI ≥ 90 Color Accuracy: High color fidelity (R9 > 50) restores rich textures and vibrant tones in high-end commercial and residential spaces.
- Safe Low-Voltage DC 48V: Touch-safe magnetic/mechanical quick-locking mechanism allows effortless hot-swappable installation along the cylinder track.
- Smart Dimming Compatible: Fully supports Casambi wireless, Tuya IoT, Triac phase-cut, and 1-10V analog dimming protocols.
DC 48V Low Voltage
Grille & Pendant Modules
CRI ≥ 90 High Fidelity
Quick Detachable System
Casambi / Tuya / 1-10V
Grille & Pendant Modules
CRI ≥ 90 High Fidelity
Quick Detachable System
Casambi / Tuya / 1-10V

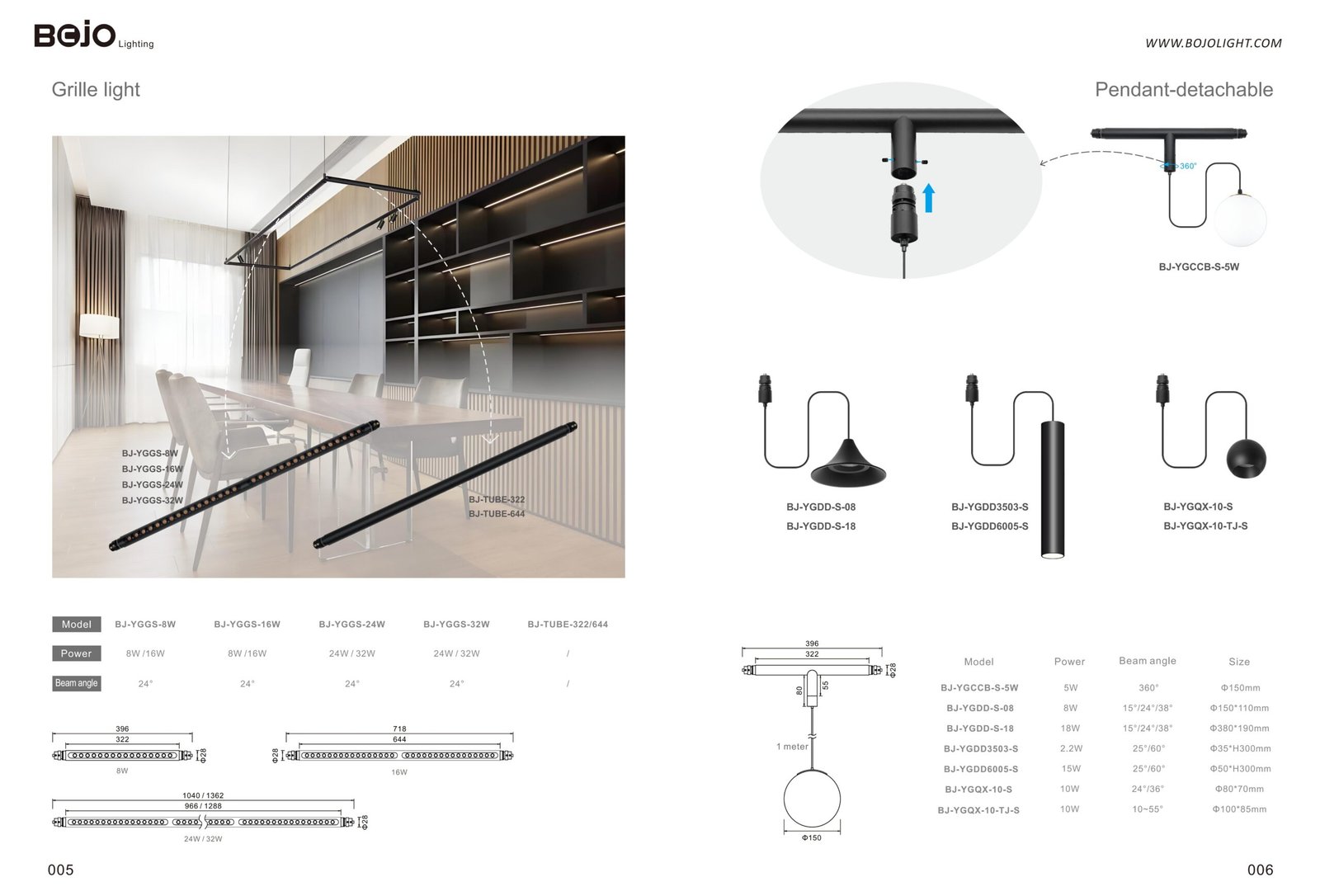

Catalog Overview & Mechanical Drawings
Modular Lighting Configurations & Optics
✨ Louvered Grille Lights (BJ-YGGS)
High-density optical reflector grilles available in 8W, 16W, 24W, and 32W with 24° beam angles. Delivers precise directional task lighting with superior anti-glare visual comfort.
💡 Detachable Globe & Cone Pendants
Features quick-connect detachable drop pendants. Models include 360° opal sphere globe light (BJ-YGCCB-S-5W) and cone pendant lights (BJ-YGDD-S-08 / S-18) in 8W to 18W.
🎯 Slim Cylinder & Adjustable Zoom Pendants
Includes ultra-slim architectural cylinder pendants (BJ-YGDD3503-S / 6005-S) and dynamic zoom focus pendants (BJ-YGQX-10-TJ-S) featuring 10°–55° adjustable beam spread.
Comprehensive Technical Specifications Matrix
| System Compatibility | BOJO Roc 360 Series (DC48V Cylinder Track System) |
| Input Operating Voltage | DC 48V Safe Extra Low Voltage (SELV) Input |
| Grille Light Models (BJ-YGGS) | BJ-YGGS-8W (8W) | BJ-YGGS-16W (16W) | BJ-YGGS-24W (24W) | BJ-YGGS-32W (32W) |
| Detachable Globe Pendant Model | BJ-YGCCB-S-5W (5W / 360° Beam / Φ150mm Opal Glass Globe) |
| Detachable Cone Pendant Models | BJ-YGDD-S-08 (8W / Φ100*110mm) | BJ-YGDD-S-18 (18W / Φ300*190mm) |
| Detachable Slim Cylinder Pendants | BJ-YGDD3503-S (2.2W / Φ35*H300mm) | BJ-YGDD6005-S (15W / Φ60*H300mm) |
| Detachable Focus & Spot Pendants | BJ-YGQX-10-S (10W / Φ80*73mm) | BJ-YGQX-10-TJ-S (10W / Φ100*85mm Zoom Focus) |
| Color Rendering Index (CRI) | CRI Ra ≥ 90 / R9 > 50 (High Color Fidelity) |
| Beam Angle Options | Grille: 24° | Globe: 360° | Pendants: 15° / 24° / 25° / 38° / 60° | Zoom Spot: 10°–55° Adjustable |
| Color Temperature (CCT) Options | 2700K Warm White, 3000K Soft Warm White, 4000K Neutral White, 5000K Daylight White |
| Color Consistency (SDCM) | MacAdam 3-Step Ellipse (SDCM ≤ 3) Uniform Binning |
| Dimming & Smart Control Protocols | Casambi Wireless Mesh, Tuya Smart App, Triac Phase-Cut, 1-10V Analog, DALI-2 Optional |
| Housing Material & Construction | Heavy-Duty Extruded 6063-T5 Aircraft Aluminum & Optical Grade Polycarbonate / Glass Diffuser |
| Finish Options | Electrostatic Powder-Coated Architectural Matte Black / Clean Pure White |
| Operating Ambient Temp | -20°C to +45°C (-4°F to 113°F) Low Heat Thermal Dissipation Design |
| Rated Operating Lifespan | 50,000+ Hours (L80B10 Maintenance Standard) |
| Ingress Protection (IP Rating) | IP20 Rated (Indoor Architectural Interior Lighting) |
| Certifications & Standards | CE, RoHS, FCC, REACH Compliant Standard |
| Factory Project Warranty | 3-Year Commercial Warranty (5-Year Extended Warranty Available) |
| OEM / ODM Support | Custom Cord Lengths, Tailored Pendant Shells, Special CCT Binning & IES Photometric Files |
Frequently Asked Questions
How does the detachable quick-connect mechanism work on pendant modules?
The pendant modules plug directly into the cylinder track adapter via a secure 360° rotational quick-connect mechanism, allowing instant installation or replacement without removing the main track housing.
Can the beam angle be adjusted on the BJ-YGQX-10-TJ-S pendant?
Yes! Model BJ-YGQX-10-TJ-S features a manual zoom lens barrel that allows continuous stepless beam angle adjustment from 10° narrow spot to 55° wide flood.
