Key Highlights & Commercial Features
- Single Directional Polarization Optics: Engineered specifically for single-sided supermarket shelf and wall-mounted display lighting using the BOJO single offset supermarket shelf light.
- 45 deg Adjustable Swing Mechanism: Allows precise beam aiming toward shelf goods to eliminate dark visual zones.
- ADC12 Die-Cast Aluminum & Fin Structure: Fin-type heat sink maximizes air contact surface for rapid heat dissipation.
- Custom High-CRI 5050 SMD Light Source: Delivering 130 lm/W with isolated flicker-free driver and optional Bluetooth smart dimming.
- Commercial Supermarket Standard: Ideal for retail aisles, wall displays, and commercial grocery chains.
Technical Specifications▼
| Product Series | BOJO Single Offset Supermarket Shelf Light |
|---|---|
| Wattage | 30W |
| Luminous Efficacy | 130 lm/W |
| Light Source | Custom High-Lumen 5050 SMD LEDs |
| Beam Angle | 30 deg / 36×70 deg Single Directional Polarization |
| Swing Angle | 45 deg Adjustable Swing |
| Dimensions | L233 x W44 x H123 mm |
| Driver & Control | Isolated External Flicker-Free Driver | Optional Bluetooth Dimming |
| Warranty | 3-Year Commercial Warranty |
Overview & Application Guide▼

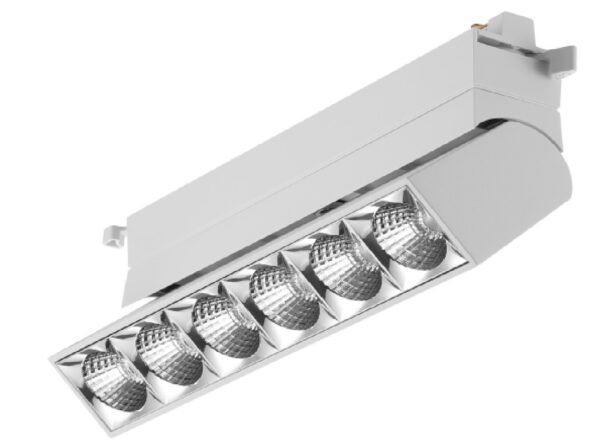

Asymmetric single offset supermarket shelf light
Designed to illuminate single-sided grocery shelves and perimeter retail displays, the single offset supermarket shelf light features an asymmetric reflector cup distribution that directs light straight onto product labels without wasting glare into walkway aisles according to LED standards.
Contact our retail sales team here for bulk quotes!
FAQ & Guide▼
Q: What is single offset polarization lighting used for?
A: Single offset optics direct light asymmetrically toward one side, perfect for perimeter supermarket walls and single-sided shelves.
